Sweep

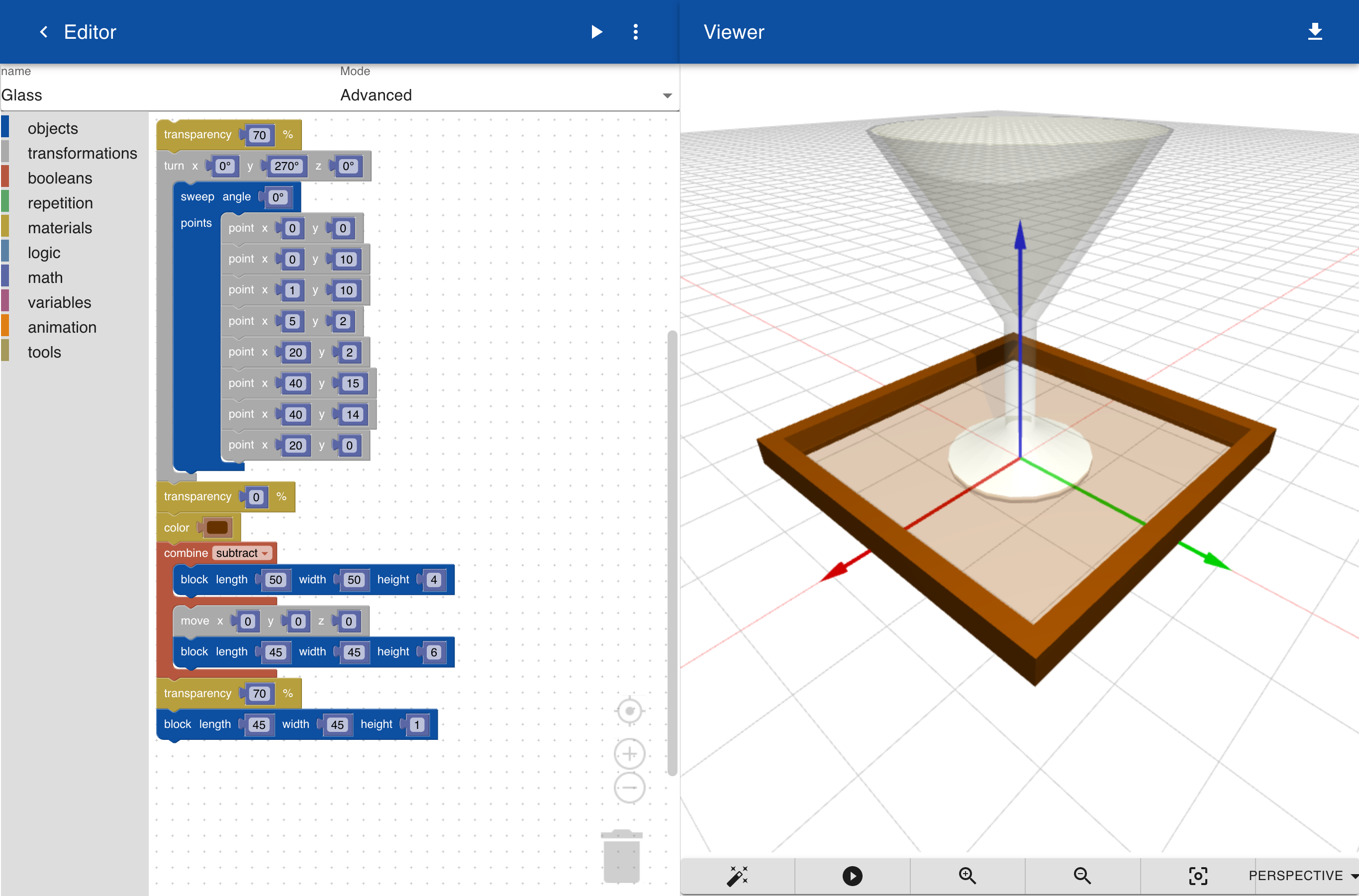

The sweep object rotates a linear profile along the X-axis. The profiles is defined by a set of 2D points in the XY-plane. The 2D point block is under the transformations menu. The advanced mode also has some extra blocks for defining material properties such as transparency, shininess and emission. The transparent table is created by subtracting two blocks and adding a transparent block at the bottom.
