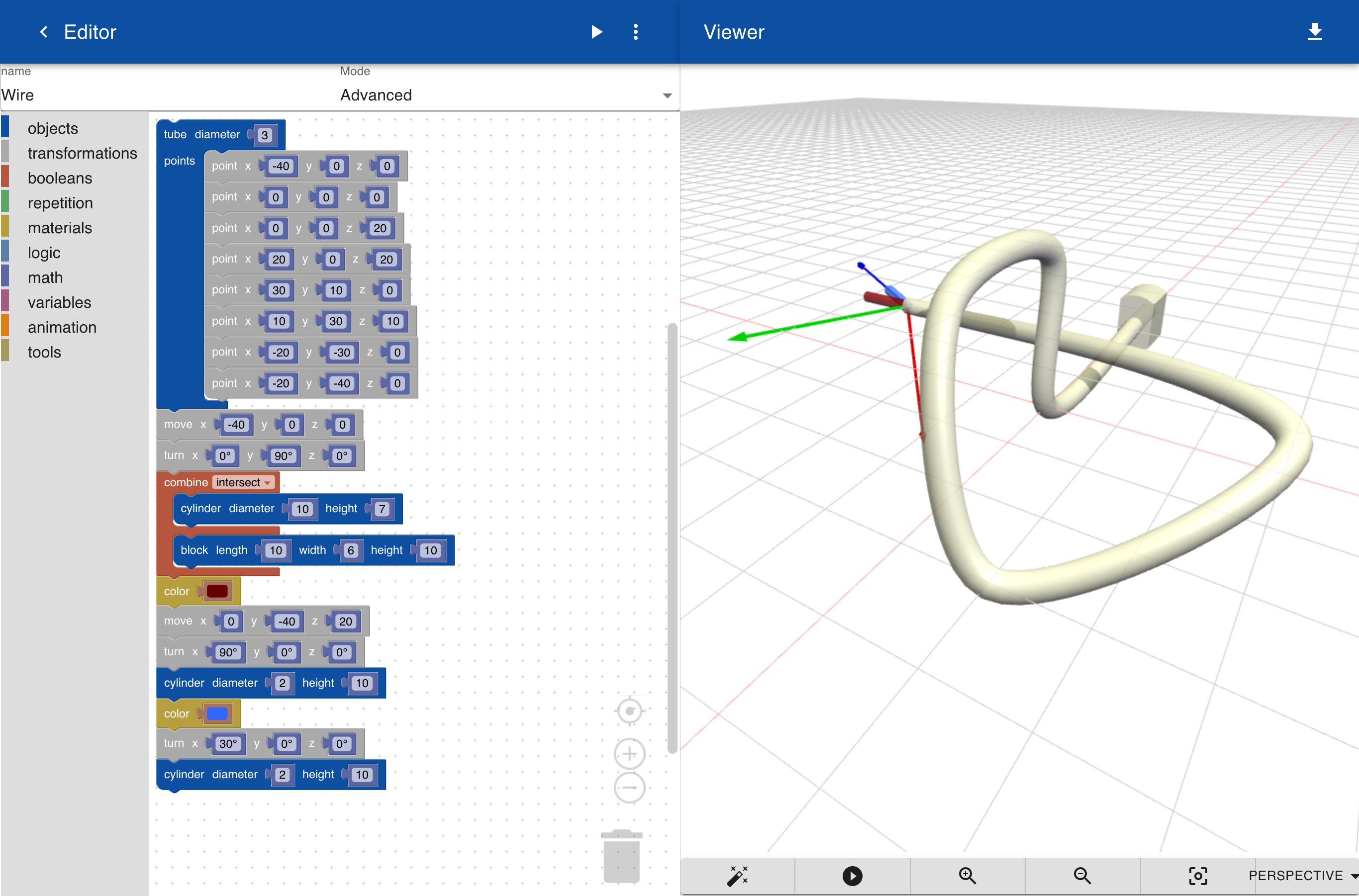

The Tube shape takes a set of 3D point statements that define the trajectory and a diameter that specifies the size of the tube. The 3D point statement can be dragged from the transformations menu. Tubes can be used to model cables, pipes and handles. The power socket at the end of the cable is created by intersecting a cube and a cylinder.
