# Reference

## Primitives​

Block

``block(l:number, w:number, h:number): node``

A block with dimension `l` along the X-axis, `w` along the Y-axis and `h` along the Z-axis.

Wedge

``wedge(l:number, w:number, h:number): node``

A wedge with dimension `l` along the X-axis, `w` along the Y-axis and `h` along the Z-axis.

Cylinder

``cylinder(d:number, h:number): node``

A cylinder with diameter `d` and heigth `h` in Z-direction.

Cone

``cone(d1:number, d2:number, h:number): node``

A cone with bottom diameter `d1`, top diameter `d2` and heigth `h` in Z-direction.

Sphere

``sphere(d:number): node``

A sphere with diameter `d` centered around the current position.

Torus

``torus(d:number, h:number, angle?:number)``

A torus with outer diameter `d`, tube diameter `h` and optional angle in degrees.

## Extrusions and sweeps​

Extrude

``extrude(points:[], h:number)``

Extrusion of profile defined by the array of points along the Z-axis with height `h`. Each point is defined by an array of two numbers.

Wall

``wall(points2D:[], w:number, h:number, options?: {floor:boolean, roof: boolean})``

Wall defined by an array of points in the XY-plane, with wall thickness `w` and height `h` and optional option to define if a floor or roof should be added.

Sweep

``sweep(points2D:[], angle?:number)``

Sweep of profile defined by the array of points in XY-plane along the X-axis. The angle in degrees is optional.

Tube

``tube(points3D:[], d:number)``

Tube through array of 3D points with diameter `d`.

Part

``part(name: string, parameters...)``

Include another object defined by `name` and optional parameters defined in the first lines of the object.

## Transformations​

Move

``move(x:number, y:number, z:number)``

Translate the current position along the XYZ-axis. All subsequent objects and transformations will be affected.

Turn

``turn(x:number, y:number, z:number)``

Rotate the current position along the XYZ-axis. All subsequent objects and transformations will be affected.

Scale

``scale(x:number, y:number, z:number)``

Scale the current position along the XYZ-axis. All subsequent objects and transformations will be affected.

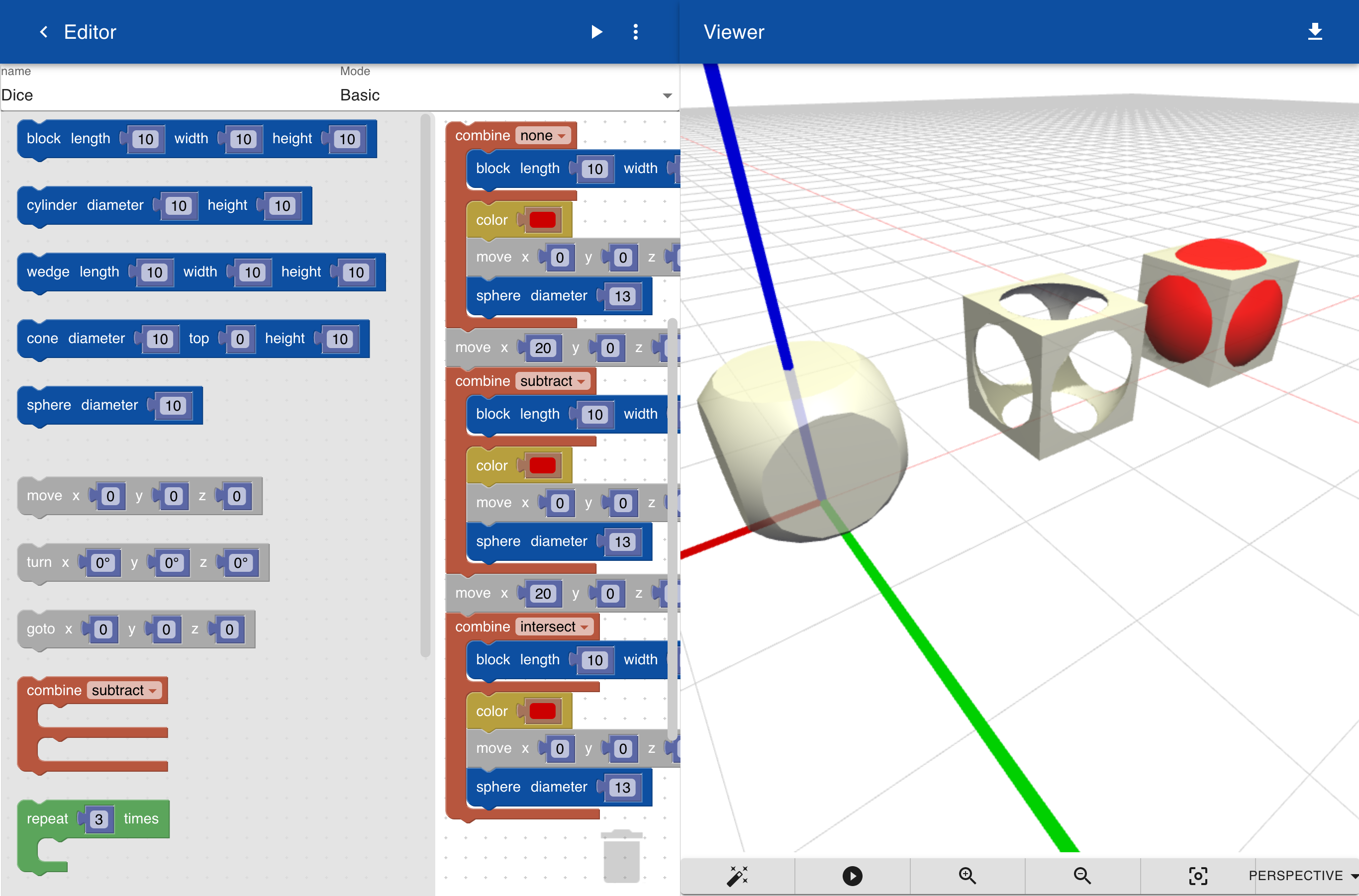

## Combine objects​

``add(a?: function, b?: function)``

Add two objects defined by optional functions `a()` and `b()`. If no arguments are provided the last two objects are added. Example:

``cylinder(10, 20)block(10,10)add()``

Subtract

``subtract(a?: function, b?: function)``

Subtract object defined by functions `b()` from object defined by function `a()`. If no arguments are provided the last objects is subtracted from the previous object. Example:

``function a(size) {  block(size, size, size)}const b = () => {    move(5, 0, 5)    color("red")    sphere(10)    cylinder(10, 20)}subtract(a(15), b())``

Intersect

``intersect(a?: function, b?: function)``

Take the common part of two objects defined by optional functions `a()` and `b()`. If no arguments are provided the last two objects are united. Example:

``{    block(10, 10, 10);}{    move(4, 0, 5);    color(10027008);    cylinder(8, 10);}intersect();``

Hull

``hull(a?:function)``

Create a convex hull that encloses the geometry. If no arguments are provided the geometry of the last object is used. Example:

``{    cylinder(15, 10);    move(30, 0, 0);    cylinder(5, 2);}hull();``

## Materials​

Color

``color(color: string)``

Set the current color. The color can be a named color like 'red' or a hexadecimal value such as `#ff0000`

Transparency

``transparency(transparency: number)``

Set the current transparency to a value between `0` and `100`. A high value is more transparent.

Shininess

``shininess(shininess: number)``

Set the current shininess to a value between `0` and `100`. A high value is more glossy.

Emissive

``emissive(emissive: number)``

Set the current emission of light of the object to a value between `0` and `100`. A high value radiates more light.

Texture

``texture(name: string, s?: number, t?: number)``

Apply the texture defined by `name` to the following objects. Optionally specify the number of repetitions in both directions with `s` and `t`.

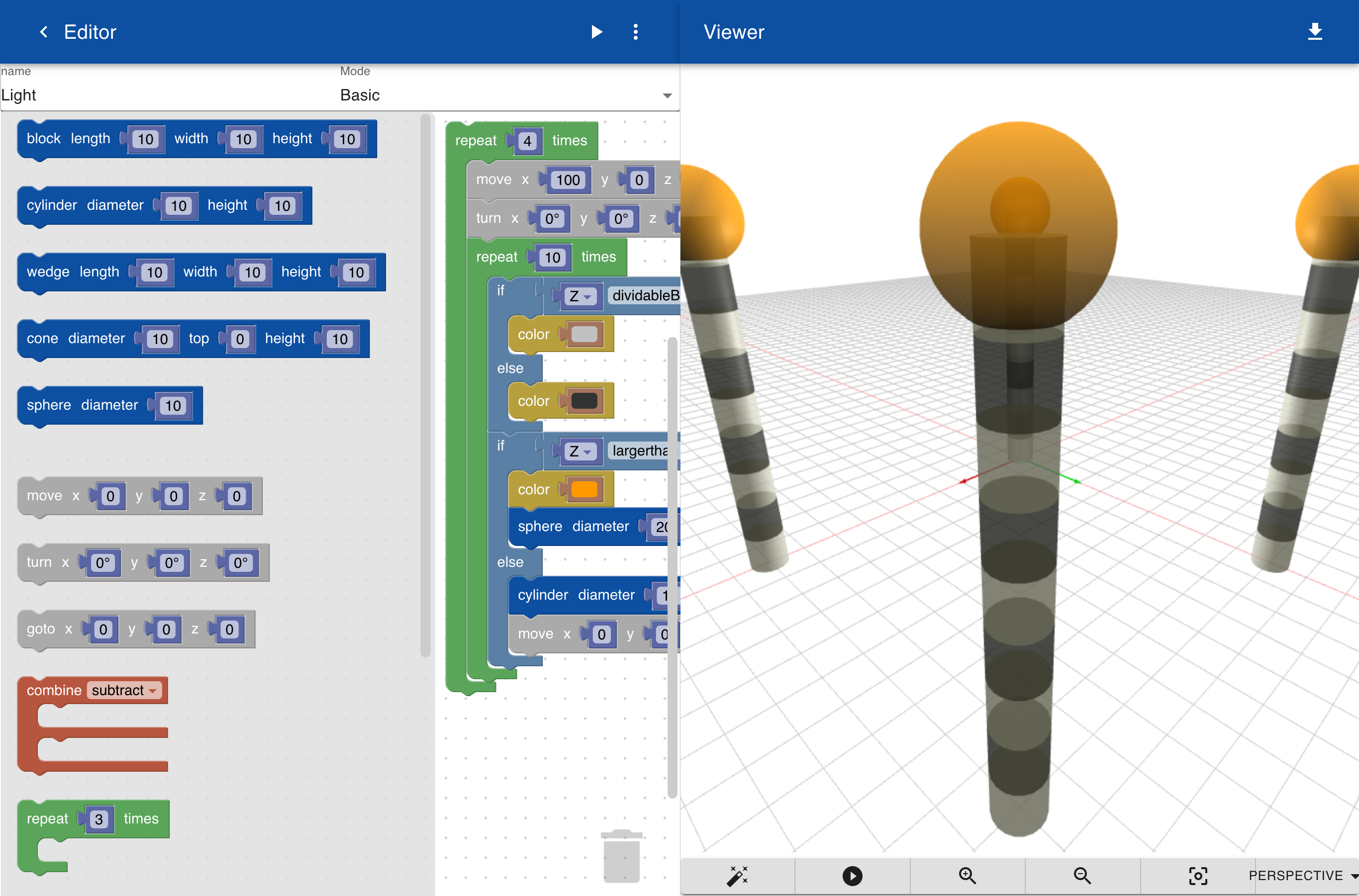

## Lighting​

Light

``light(type: 'ambient' | 'point' |'spot', options: { color?: string, intensity?: number, power?: number, position?: [number, number, number], target?: [number, number, number], angle?:number)``

When you add a light to the scene this replaces the default lighting settings. You can combine multiple lights in a single scene. The `position` is only applicable for `point` and `spot` lights. For `spot` lights you can define the `target` point to which the light is aimed and the `angle` of the light beam in degrees. Examples:

``light('ambient', {color: 'red', intensity: 3})light('point', {color: '#FFFF00', intensity: 1, position: [10,3,20]})light('spot', {color: '#FFFF00', intensity: 1, position: [30,10,20], target:[0,0,5], angle: 10})``

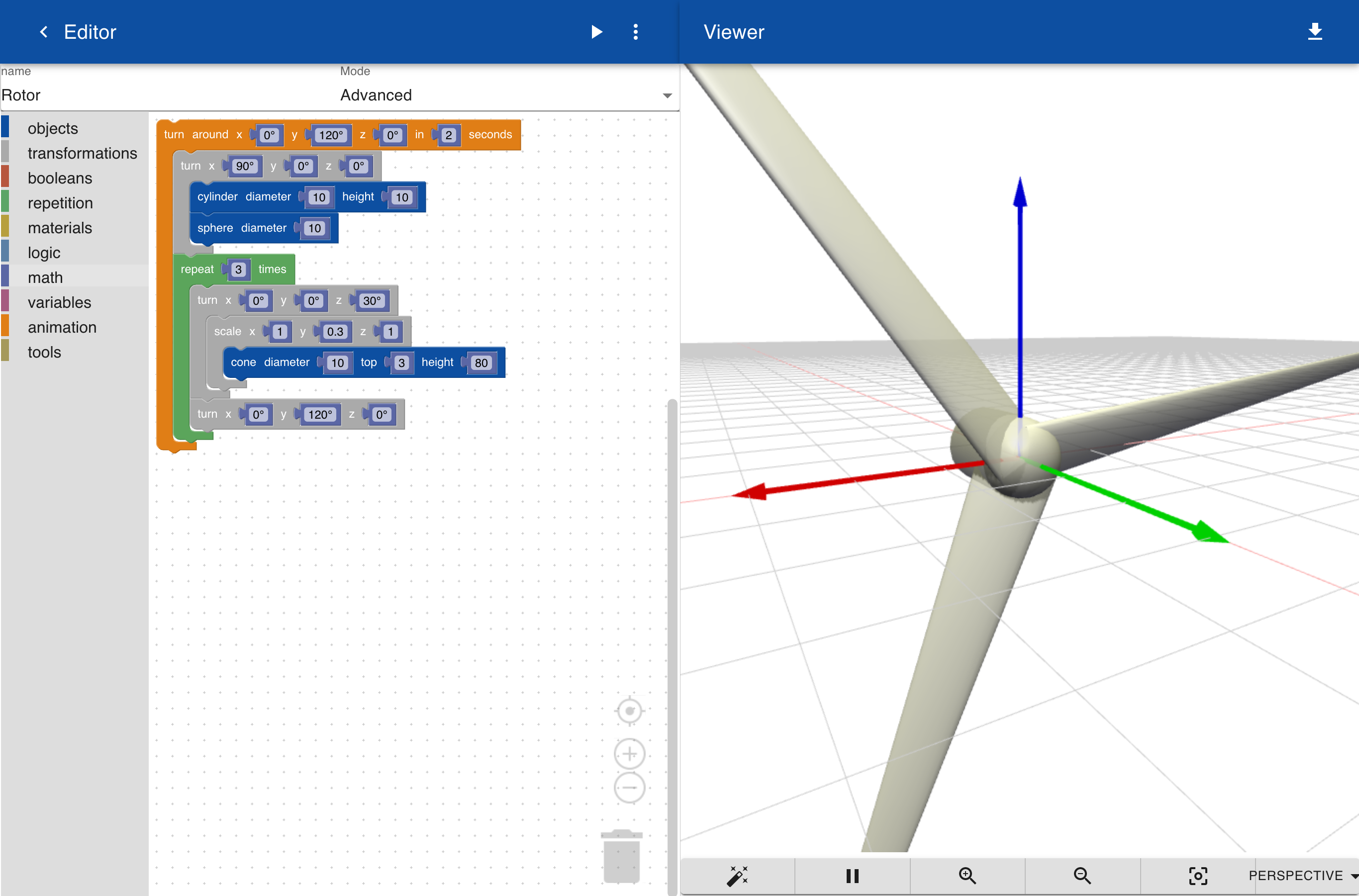

## Animation​

Animate

``animate(keyframe:[], options?: {type: "rotate"|"translate"})``

Animate the last object using an array of keyframe. Each keyframe is an array of 4 numbers where this first number is the time defined in seconds and the following three numbers the 3D position or rotation at that time. Example:

``{    block(10,10,10)    cylinder(10, 50)}animate([[1, 0, 0,10],[2, 0, 10,10]], {type: 'translate'})``
